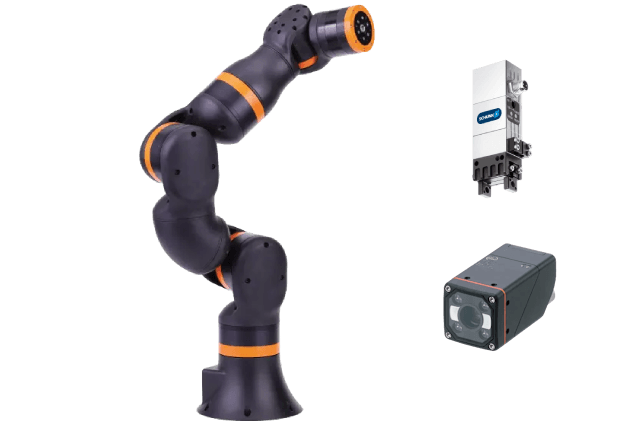

ReBeL Education Bundle

1 / 4

Part No.: BUNDLE_EDU_1

The ReBeL is ideally suited to provide insights into the functioning of: pick-up and delivery services, pick & place tasks or assembly aids of robots.
Due to its 6 degrees of freedom, it is capable of implementing a wide variety of programming and demonstrating the many possibilities of robotics.
Its low dead weight of only 8kg makes it unimaginably mobile and flexible and thus also excellently suited for the educational sector.
In conjunction with the fully integrated igus Robot Control (iRC), the object recognition sensor and the gripper , you can directly demonstrate most use cases.

Usual delivery time: 3 weeks

‌

Stroke per jaw

End Effector Propulsion Method

Electric

Max Combined Payload

DOF

Highlights

https://a.storyblok.com/f/298593/aef88b8275/3dp_gen_workshop_de_1.jpg

LCA Learning

Didactic learning material included

On the igus® website you will find learning content tailored to the robots. Power-Point presentations, worksheets, videos and seminars help you to deepen your knowledge of robotics and low-cost automation.

The LCA Learning page is available to you completely free of charge and without restrictions.

View learning material

https://a.storyblok.com/f/298593/3fcc048661/90.gif

Includes igus® Robot Control

Modular control and Software

This set of hardware controller and software enables you to control the ReBeL® robot arm. With the corresponding software, you can program and move the robot via a graphical user interface. Main features:

Intuitive control and programming environment with interactive 3D user interface
Programming commands like Joint, Linear, If-Then-Else, DigitalOut, Loop etc.
Interface to remote computer via TCP/IP
ROS packages are available

https://a.storyblok.com/f/298593/bfddb1987f/rebel-config.gif

Fit to your needs

ReBeL configurator

Customize the ReBeL robot to your needs and receive a summary by email.

Configure linear robot now

Components

igus ReBeL | 6 DOF | 660 mm | 2 kg

by igus®Part No.: RBTX-IGUS-0169

Compact Cobot for Service & Industrial Automation

The igus ReBeL 6DOF is a lightweight cobot with 6 axes, designed for collaborative tasks. With a payload of up to 2 kg, a reach of 664 mm, and repeatability of ±1 mm, it delivers reliable performance for precise robotics in industrial automation. Its compact design and low weight allow easy integration into existing workflows.

ReBeL supports interfaces like Modbus TCP, TCP/IP, and is compatible with ROS. The intuitive igus Robot Control (iRC) software simplifies programming and integration into automation systems.

Suitable for pick & place, inspection tasks, lab automation, and light assembly. Ideal for SMEs, educational institutions, and developers seeking an affordable robotic arm for industrial automation.

Electric Parallel Gripper - EGP series

by SCHUNK GmbH & Co. KGPart No.: RBTX-SNK-0044

Electric 2-finger parallel gripper with smooth-running base jaws guided on roller bearings. Gripping and moving of small to medium-sized workpieces with flexible force and high speed in clean environments, such as assembly, testing, laboratory and pharmaceutical industry. Available in different sizes.

2D IR vision sensor for object detection and inspection

by ifm electronic gmbhPart No.: RBTX-IFM-0019

Combinable 2D inspection of contours and surfaces for maximum quality assurance
The IR version has an integrated bandpass filter that only allows light in the infrared spectrum to pass through. This makes the device very robust against ambient light.
Powerful algorithms master even demanding requirements
User-friendly software simplifies inspection task set-up
Reliable function in changing light conditions
Electric focus takes aim at details
Modell O2D520
